Underground frame for disabled toilets AQUAFIX AQFX0007 Franke

  • Kod produktu: AQFX0007
  • Manufacturer: FRANKE
  • Availability: Product available.
  • Add feedback:
    0 z 0 opinii
  • Obserwuj produkt:
  • FRANKE
  • €338.90 €275.53 net
  • Quantity:
  • Order now, we will send today!
    Today's shipment is available for only:

    Place your order now, we will send your wares in:

    Monday (29 July) at 2:00 PM Wednesday (07 August) at 2:00 PM 0 szt. in stock, shipping: Monday (29 July) at 2:00 PMdziś
    hminsec

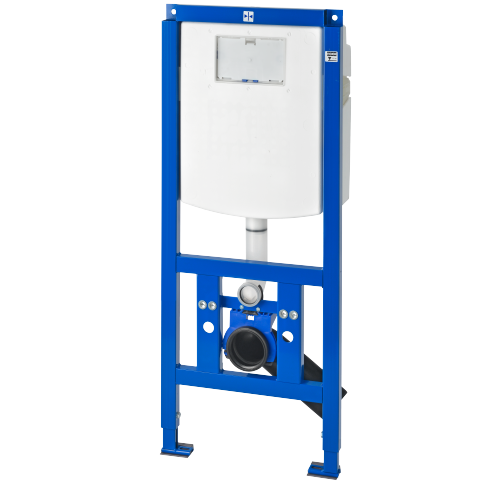

Underground frame for mounting a toilet bowl for people with disabilities. Material: steel. Mounting type: underground. Minimum wall thickness: 135 mm. Application: wall-mounted toilets in barrier-free bathrooms. Dimensions: 450 × 1120 mm (width x height). Depth adjustment: 165-205 mm with mounting brackets. Height adjustment: 0-200 mm. Clamping device adjustable in 4 stages, suitable for the toilet bowl drain knee DN 90/DN 100. Filling valve: Class I noise level. Included: flexible connection hose, toilet bowl drain knee, pins for mounting the toilet bowl, protective covers for construction time, mounting kit.
AQUAFIX concealed frame for wall-mounted toilet bowls intended for barrier-free bathrooms, equipped with a water tank for installation in the wall. Self-supporting, powder-coated steel frame. The product has been checked by the German TÜV. For single, dry construction. Equipped with anti-dew insulation, a concealed cistern with the option of selecting one of two capacity options (7.5-4.5 l or 4-2 l) or with a start/stop flush function. Transfer of the force triggering the flush function through highly flexible push-button spirals. Filling valve – noise class I. 4-stage adjustable mounting clamp, suitable for toilet bowl drain elbow DN 90/DN 100. The set includes: flexible connection hose, drain elbow, pins for mounting the toilet bowl, protective covers during construction and an assembly kit.

Parameters

Underground frame for mounting a toilet bowl for people with disabilities. Material: steel. Mounting type: underground. Minimum wall thickness: 135 mm. Application: wall-mounted toilets in barrier-free bathrooms. Dimensions: 450 × 1120 mm (width x height). Depth adjustment: 165-205 mm with mounting brackets. Height adjustment: 0-200 mm. Clamping device adjustable in 4 stages, suitable for the toilet bowl drain knee DN 90/DN 100. Filling valve: Class I noise level. Included: flexible connection hose, toilet bowl drain knee, pins for mounting the toilet bowl, protective covers for construction time, mounting kit.

AQUAFIX concealed frame for wall-mounted toilet bowls intended for barrier-free bathrooms, equipped with a water tank for installation in the wall. Self-supporting, powder-coated steel frame. The product has been checked by the German TÜV. For single, dry construction. Equipped with anti-dew insulation, a concealed cistern with the option of selecting one of two capacity options (7.5-4.5 l or 4-2 l) or with a start/stop flush function. Transfer of the force triggering the flush function through highly flexible push-button spirals. Filling valve – noise class I. 4-stage adjustable mounting clamp, suitable for toilet bowl drain elbow DN 90/DN 100. The set includes: flexible connection hose, drain elbow, pins for mounting the toilet bowl, protective covers during construction and an assembly kit.
