Substructure for ceramic urinals AQUA AQFX0001 Franke
- Kod produktu: AQFX0001
- Manufacturer: FRANKE
- Availability: Product available.
-
Add feedback:
0 z 0 opinii
- Obserwuj produkt:
- €323.85 €263.29 net
-
Order now, we will send today!
Today's shipment is available for only:Place your order now, we will send your wares in:
Monday (25 November) at 2:00 PM Wednesday (04 December) at 2:00 PM 0 pcs. in stock, shipping: Monday (25 November) at 2:00 PMdziśh min sec
- Material: steel
- Type: installation element
- Mounting type: wall and floor mounting
- Minimum wall thickness: 135 mm
- Application: urinals
- Mixing method: without mixing
- Barrier-free: no
- Drain diameter: DN 50
- Dimensions: 525 × 1120 mm (width x height)
- Depth adjustment: 135 – 205 mm with mounting brackets
- Height adjustment: 0-200 mm
- Nominal diameter: DN 15
- Power supply location: side
Included: universal DN 50 drain elbow, pins for urinal installation, protective covers for construction period, mounting kit.

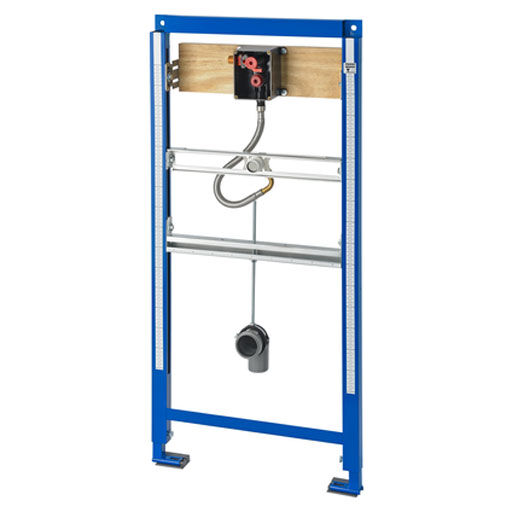

AQUAFIX concealed frame designed for ceramic urinals. The frame is equipped with an installation box for FLUSH-S and FLUSH-C flush fittings. Designed for single dry construction, equipped with a self-supporting powder-coated steel frame. The AQUAFIX frame has adjustable height for mounting the urinal, fittings connection and drain handle. The wall culvert is acoustically insulated and has a rubber flush pipe connector.
Tip: When installing ceramic urinals, adjust the crossbars of the frame at the installation site.
Tip: When installing ceramic urinals, adjust the crossbars of the frame at the installation site.
Shortcuts:
Parameters
- Material: steel
- Type: installation element
- Mounting type: wall and floor mounting
- Minimum wall thickness: 135 mm
- Application: urinals
- Mixing method: without mixing
- Barrier-free: no
- Drain diameter: DN 50
- Dimensions: 525 × 1120 mm (width x height)
- Depth adjustment: 135 – 205 mm with mounting brackets
- Height adjustment: 0-200 mm
- Nominal diameter: DN 15
- Power supply location: side
Included: universal DN 50 drain elbow, pins for urinal installation, protective covers for construction period, mounting kit.
AQUAFIX concealed frame designed for ceramic urinals. The frame is equipped with an installation box for FLUSH-S and FLUSH-C flush fittings. Designed for single dry construction, equipped with a self-supporting powder-coated steel frame. The AQUAFIX frame has adjustable height for mounting the urinal, fittings connection and drain handle. The wall culvert is acoustically insulated and has a rubber flush pipe connector.
Tip: When installing ceramic urinals, adjust the crossbars of the frame at the installation site.
Tip: When installing ceramic urinals, adjust the crossbars of the frame at the installation site.
