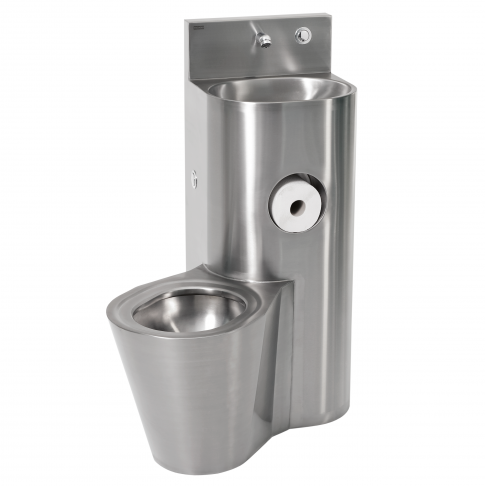

Set: washbasin + toilet bowl with a left-hand outlet placed on the right side at a 45° angle Franke.
- Kod produktu: HDTX805R
- Manufacturer: FRANKE
- Availability: Product available.
-
Add feedback:
0 z 0 opinii
- Obserwuj produkt:
- €4,460.99 €3,626.82 net
-
Order now, we will send today!
Today's shipment is available for only:Place your order now, we will send your wares in:
tommorow at 2:00 PM 03 December (Tuesday) at 2:00 PM 0 pcs. in stock, shipping: tommorow at 2:00 PMdziśh min sec
Stainless Steel Sanitary Set Franke
- Material: stainless steel
- Gross weight: 54.50 kg
- Net weight: 40.00 kg
- Material code: austenitic stainless steel 1.4301 V2A
- Depth: 669.00 mm
- Width: 699.00 mm
- Height: 1,000.00 mm
- Installation: threaded screw installation
- Top edge of the chamber: 850.00 mm
- Drain diameter: DN 50 / DN 100
- Inlet diameter: DN 15
- Housing width: 390.00 mm
- Piping material: stainless steel
- Self-closing faucets: mechanical
- Toilet paper holder diameter: 153.00 mm
- Spout length: 83.00 mm
- Faucets with built-in aerator: no
- Types of drain fittings: WC tank
- Depth: 20.00 mm
- WC bowl height: 400.00 mm
- WC bowl position: on the right side
Sanitary set "washbasin + toilet bowl" made of stainless steel, matt polished surface, for installation with the back to the wall behind which it is located service room, with remote electronic fittings mounted in the service room. Threaded rods for vandal-proof installation on the service room side. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and activation button. Oval washbasin bowl seamlessly connected to the column, plastic siphon, DN 40 drain. Seamlessly welded recess for storing toilet paper. Welded stainless steel funnel toilet bowl, material thickness 1.6 mm, with floor-length surrounding apron, positioning of the toilet bowl on the right at an angle of 45°. The edge of the bowl is protected against hiding objects, flushing performance certified according to EN 997, horizontal rear drain DN 100. Self-closing globe valve with remote activation for connection to pre-mixed water or natural water, self-closing with anti-rebound protection. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Mounting kit included.
Parameters
Stainless Steel Sanitary Set Franke
- Material: stainless steel
- Gross weight: 54.50 kg
- Net weight: 40.00 kg
- Material code: austenitic stainless steel 1.4301 V2A
- Depth: 669.00 mm
- Width: 699.00 mm
- Height: 1,000.00 mm
- Installation: threaded screw installation
- Top edge of the chamber: 850.00 mm
- Drain diameter: DN 50 / DN 100
- Inlet diameter: DN 15
- Housing width: 390.00 mm
- Piping material: stainless steel
- Self-closing faucets: mechanical
- Toilet paper holder diameter: 153.00 mm
- Spout length: 83.00 mm
- Faucets with built-in aerator: no
- Types of drain fittings: WC tank
- Depth: 20.00 mm
- WC bowl height: 400.00 mm
- WC bowl position: on the right side
Sanitary set "washbasin + toilet bowl" made of stainless steel, matt polished surface, for installation with the back to the wall behind which it is located service room, with remote electronic fittings mounted in the service room. Threaded rods for vandal-proof installation on the service room side. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and activation button. Oval washbasin bowl seamlessly connected to the column, plastic siphon, DN 40 drain. Seamlessly welded recess for storing toilet paper. Welded stainless steel funnel toilet bowl, material thickness 1.6 mm, with floor-length surrounding apron, positioning of the toilet bowl on the right at an angle of 45°. The edge of the bowl is protected against hiding objects, flushing performance certified according to EN 997, horizontal rear drain DN 100. Self-closing globe valve with remote activation for connection to pre-mixed water or natural water, self-closing with anti-rebound protection. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Mounting kit included.
