Set: sink + toilet bowl with centrally located siphon Franke.
- Kod produktu: HDTX816M
- Manufacturer: FRANKE
- Availability: Product available.
-
Add feedback:
0 z 0 opinii
- Obserwuj produkt:
- €5,394.64 €4,385.89 net
-
Order now, we will send today!
Today's shipment is available for only:Place your order now, we will send your wares in:
tommorow at 2:00 PM 03 December (Tuesday) at 2:00 PM 0 pcs. in stock, shipping: tommorow at 2:00 PMdziśh min sec

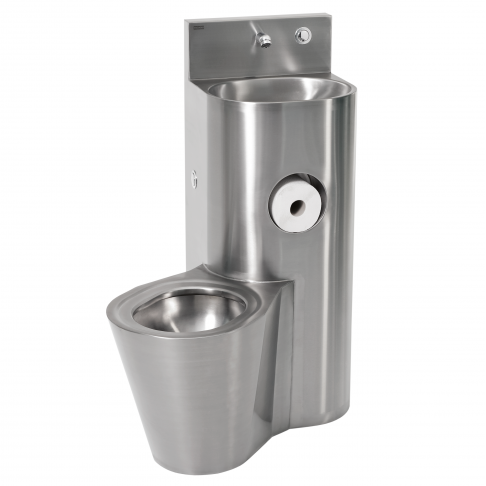

Vandal-resistant sanitary set Franke
- Material: stainless steel
- Gross weight: 66.00 kg
- Net weight: 62.5 kg
- Material code: austenitic stainless steel 1.4301 V2A
- Depth: 890.00 mm
- Width: 500.00 mm
- Height: 1,050.00 mm
- Installation: threaded screw installation
- Top edge of the chamber: 850.00 mm
- Drain diameter: DN 50 / DN 100
- Inlet diameter: DN 15
- Housing width: 500.00 mm
- Piping material: stainless steel
- Self-closing faucets: electronic
- Toilet paper holder diameter: 153.00 mm
- Spout length: 83.00 mm
- Faucets with built-in aerator: no
- Types of drain fittings: WC tank
- Depth: 160.00 mm
- WC bowl height: 400.00 mm
- WC bowl position: in the middle
Sanitary set "washbasin + toilet bowl" made of stainless steel, matt ground surface, for wall mounting, with integrated electronic elements fittings. Concealed fixing with double-sided screws, lockable inspection opening. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and piezoelectric button with Start/Stop function. Oval washbasin bowl seamlessly connected to the column, plastic siphon. Seamlessly welded recess for storing toilet paper. Welded funnel toilet bowl made of stainless steel, material thickness 1.6 mm, with a floor-length apron surrounding the toilet, central positioning of the toilet bowl. Bowl edge protected against objects being hidden, flush activation via piezoelectric button, flushing performance certified according to EN 997, horizontal rear drain DN 100. Solenoid valve for connecting pre-mixed water or cold water. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Connection voltage 24 V DC. Mounting kit included.
Parameters
Vandal-resistant sanitary set Franke
- Material: stainless steel
- Gross weight: 66.00 kg
- Net weight: 62.5 kg
- Material code: austenitic stainless steel 1.4301 V2A
- Depth: 890.00 mm
- Width: 500.00 mm
- Height: 1,050.00 mm
- Installation: threaded screw installation
- Top edge of the chamber: 850.00 mm
- Drain diameter: DN 50 / DN 100
- Inlet diameter: DN 15
- Housing width: 500.00 mm
- Piping material: stainless steel
- Self-closing faucets: electronic
- Toilet paper holder diameter: 153.00 mm
- Spout length: 83.00 mm
- Faucets with built-in aerator: no
- Types of drain fittings: WC tank
- Depth: 160.00 mm
- WC bowl height: 400.00 mm
- WC bowl position: in the middle
Sanitary set "washbasin + toilet bowl" made of stainless steel, matt ground surface, for wall mounting, with integrated electronic elements fittings. Concealed fixing with double-sided screws, lockable inspection opening. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and piezoelectric button with Start/Stop function. Oval washbasin bowl seamlessly connected to the column, plastic siphon. Seamlessly welded recess for storing toilet paper. Welded funnel toilet bowl made of stainless steel, material thickness 1.6 mm, with a floor-length apron surrounding the toilet, central positioning of the toilet bowl. Bowl edge protected against objects being hidden, flush activation via piezoelectric button, flushing performance certified according to EN 997, horizontal rear drain DN 100. Solenoid valve for connecting pre-mixed water or cold water. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Connection voltage 24 V DC. Mounting kit included.
