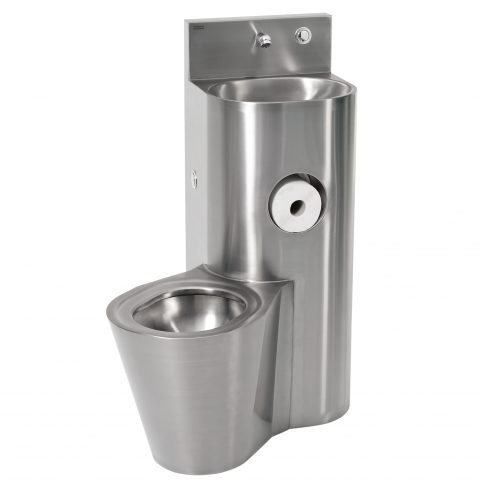

Set: sink + toilet bowl with a right-hand offset bowl at a 45° angle Franke.

  • Kod produktu: HDTX806R
  • Manufacturer: FRANKE
  • Availability: Product available.
  • Add feedback:
    0 z 0 opinii
  • Obserwuj produkt:
    • FRANKE
  • €4,782.82 €3,888.47 net
  • Quantity:

  • Order now, we will send today!
    Today's shipment is available for only:

    Place your order now, we will send your wares in:

    Monday (29 July) at 2:00 PM Wednesday (07 August) at 2:00 PM 0 szt. in stock, shipping: Monday (29 July) at 2:00 PMdziś
    h min sec
Franke HEAVY DUTY sanitary set for prisons:- Material: stainless steel- Gross weight: 65.00 kg- Net weight: 40.00 kg- Material code: austenitic stainless steel 1.4301 V2A- Depth: 669.00 mm- Width: 699.00 mm- Height: 1,000.00 mm- Installation: threaded screw installation- Upper edge of the chamber: 850.00 mm- Drain diameter: DN 50 / DN 100- Inlet diameter: DN 15- Housing width: 390.00 mm- Piping material: stainless steel- Self-closing faucets: electronic- Toilet paper holder diameter: 153.00 mm- Spout length: 83.00 mm- Faucets with built-in aerator: no- Types of drain connections: pressure valve for toilet- Depth: 20.00 mm- Toilet bowl height: 400.00 mm- Toilet bowl position: on the right side.

Sanitary set "washbasin + toilet bowl" made of stainless steel, matt polished surface, for installation with the back to the wall behind which it is located service room, with remote electronic fittings mounted in the service room. Threaded rods for vandal-proof installation on the service room side. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and piezoelectric button with Start/Stop function. Oval washbasin bowl seamlessly connected to the column, plastic siphon, DN 40 drain. Seamlessly welded recess for storing toilet paper. Welded stainless steel funnel toilet bowl, material thickness 1.6 mm, with floor-length surrounding apron, positioning of the toilet bowl on the right at an angle of 45°. Bowl edge protected against objects being hidden, flush activation via piezoelectric button, flushing performance certified according to EN 997, horizontal rear drain DN 100. Solenoid valve for connection to pre-mixed water or natural water. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Connection voltage 24 V DC. Mounting kit included.

Parameters

Franke HEAVY DUTY sanitary set for prisons:- Material: stainless steel- Gross weight: 65.00 kg- Net weight: 40.00 kg- Material code: austenitic stainless steel 1.4301 V2A- Depth: 669.00 mm- Width: 699.00 mm- Height: 1,000.00 mm- Installation: threaded screw installation- Upper edge of the chamber: 850.00 mm- Drain diameter: DN 50 / DN 100- Inlet diameter: DN 15- Housing width: 390.00 mm- Piping material: stainless steel- Self-closing faucets: electronic- Toilet paper holder diameter: 153.00 mm- Spout length: 83.00 mm- Faucets with built-in aerator: no- Types of drain connections: pressure valve for toilet- Depth: 20.00 mm- Toilet bowl height: 400.00 mm- Toilet bowl position: on the right side.

Sanitary set "washbasin + toilet bowl" made of stainless steel, matt polished surface, for installation with the back to the wall behind which it is located service room, with remote electronic fittings mounted in the service room. Threaded rods for vandal-proof installation on the service room side. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and piezoelectric button with Start/Stop function. Oval washbasin bowl seamlessly connected to the column, plastic siphon, DN 40 drain. Seamlessly welded recess for storing toilet paper. Welded stainless steel funnel toilet bowl, material thickness 1.6 mm, with floor-length surrounding apron, positioning of the toilet bowl on the right at an angle of 45°. Bowl edge protected against objects being hidden, flush activation via piezoelectric button, flushing performance certified according to EN 997, horizontal rear drain DN 100. Solenoid valve for connection to pre-mixed water or natural water. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Connection voltage 24 V DC. Mounting kit included.
