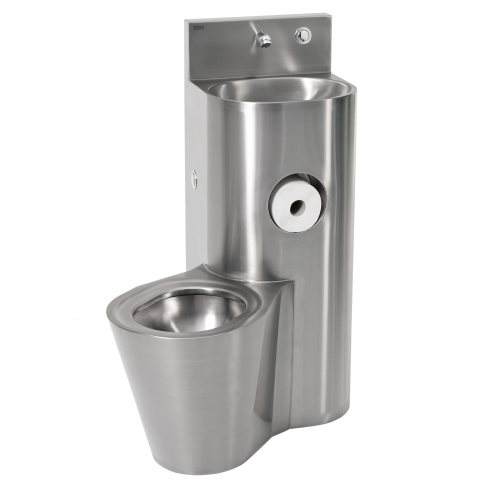

Set: sanitary washbasin + WC bowl with centrally located siphonic trap Franke.
- Kod produktu: HDTX805M
- Manufacturer: FRANKE
- Availability: Product available.
-
Add feedback:
0 z 0 opinii
- Obserwuj produkt:
- €4,460.99 €3,626.82 net
-
Order now, we will send today!
Today's shipment is available for only:Place your order now, we will send your wares in:
tommorow at 2:00 PM 03 December (Tuesday) at 2:00 PM 0 pcs. in stock, shipping: tommorow at 2:00 PMdziśh min sec
Sanitary set for prison Franke
- Material: stainless steel
- Gross weight: 63.50 kg
- Net weight: 40.00 kg
- Material code: austenitic stainless steel 1.4301 V2A
- Depth: 775.00 mm
- Width: 390.00 mm
- Height: 1,000.00 mm
- Installation: threaded screw installation
- Top edge of the chamber: 850.00 mm
- Drain diameter: DN 50 / DN 100
- Inlet diameter: DN 15
- Housing width: 390.00 mm
- Piping material: stainless steel
- Self-closing faucets: mechanical
- Toilet paper holder diameter: 153.00 mm
- Spout length: 83.00 mm
- Faucets with built-in aerator: no
- Types of drain fittings: WC tank
- Depth: 20.00 mm
- WC bowl height: 400.00 mm
- WC bowl position: in the center
Sanitary set "washbasin + toilet bowl" made of stainless steel, matt polished surface, for installation with the back to the wall behind which it is located service room, with remote electronic fittings mounted in the service room. Threaded rods for vandal-proof installation on the service room side. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and activation button. Oval washbasin bowl seamlessly connected to the column, plastic siphon, DN 40 drain. Seamlessly welded recess for storing toilet paper. Welded funnel toilet bowl made of stainless steel, material thickness 1.6 mm, with a floor-length apron surrounding the toilet, central positioning of the toilet bowl. The edge of the bowl is protected against hiding objects, flushing performance certified according to EN 997, horizontal rear drain DN 100. Self-closing globe valve with remote activation for connection to pre-mixed water or natural water, self-closing with anti-rebound protection. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Mounting kit included.
Parameters
Sanitary set for prison Franke
- Material: stainless steel
- Gross weight: 63.50 kg
- Net weight: 40.00 kg
- Material code: austenitic stainless steel 1.4301 V2A
- Depth: 775.00 mm
- Width: 390.00 mm
- Height: 1,000.00 mm
- Installation: threaded screw installation
- Top edge of the chamber: 850.00 mm
- Drain diameter: DN 50 / DN 100
- Inlet diameter: DN 15
- Housing width: 390.00 mm
- Piping material: stainless steel
- Self-closing faucets: mechanical
- Toilet paper holder diameter: 153.00 mm
- Spout length: 83.00 mm
- Faucets with built-in aerator: no
- Types of drain fittings: WC tank
- Depth: 20.00 mm
- WC bowl height: 400.00 mm
- WC bowl position: in the center
Sanitary set "washbasin + toilet bowl" made of stainless steel, matt polished surface, for installation with the back to the wall behind which it is located service room, with remote electronic fittings mounted in the service room. Threaded rods for vandal-proof installation on the service room side. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and activation button. Oval washbasin bowl seamlessly connected to the column, plastic siphon, DN 40 drain. Seamlessly welded recess for storing toilet paper. Welded funnel toilet bowl made of stainless steel, material thickness 1.6 mm, with a floor-length apron surrounding the toilet, central positioning of the toilet bowl. The edge of the bowl is protected against hiding objects, flushing performance certified according to EN 997, horizontal rear drain DN 100. Self-closing globe valve with remote activation for connection to pre-mixed water or natural water, self-closing with anti-rebound protection. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Mounting kit included.
