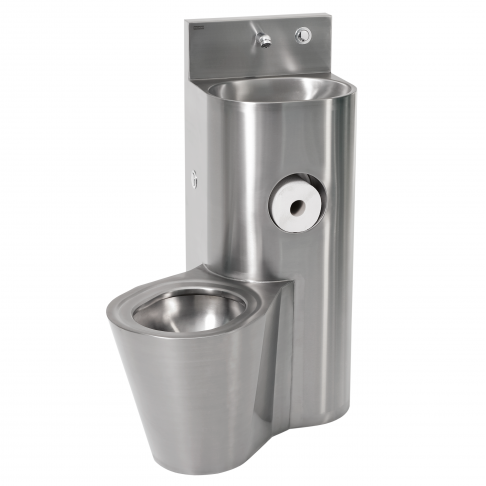

Set: sanitary washbasin + toilet bowl 810 x 1050 x 780 mm HDTX816R Franke.
- Kod produktu: HDTX816R
- Manufacturer: FRANKE
- Availability: Product available.
-
Add feedback:
0 z 0 opinii
- Obserwuj produkt:
- €5,394.64 €4,385.89 net
-
Order now, we will send today!
Today's shipment is available for only:Place your order now, we will send your wares in:
tommorow at 2:00 PM 03 December (Tuesday) at 2:00 PM 0 pcs. in stock, shipping: tommorow at 2:00 PMdziśh min sec
Franke HEAVY DUTY Vandal-Resistant Sanitary Set
- Material: stainless steel
- Gross weight: 69.80 kg
- Net weight: 44.80 kg
- Material code: austenitic stainless steel 1.4301 V2A
- Depth: 780.00 mm
- Width: 810.00 mm
- Height: 1,050.00 mm
- Installation: wall-mounted installation
- Top edge of the chamber: 850.00 mm
- Drain diameter: DN 50 / DN 100
- Inlet diameter: DN 15
- Cabinet width: 500.00 mm
- Piping material: stainless steel
- Self-closing faucets: mechanical
- Toilet paper holder diameter: 153.00 mm
- Spout length: 83.00 mm
- Faucets with built-in aerator: no
- Types of drain fittings: WC tank
- Depth: 160.00 mm
- WC bowl height: 400.00 mm
- WC bowl position: on the right side
Sanitary set "washbasin + toilet bowl" made of stainless steel, matt ground surface, for wall mounting, with integrated electronic elements fittings. Concealed fixing with double-sided screws, lockable inspection opening. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and piezoelectric button with Start/Stop function. Oval washbasin bowl seamlessly connected to the column, plastic siphon. Seamlessly welded recess for storing toilet paper. Welded stainless steel funnel toilet bowl, material thickness 1.6 mm, with floor-length surrounding apron, positioning of the toilet bowl on the right at an angle of 45°. Bowl edge protected against objects being hidden, flush activation via piezoelectric button, flushing performance certified according to EN 997, horizontal rear drain DN 100. Solenoid valve for connecting pre-mixed water or cold water. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Connection voltage 24 V DC. Mounting kit included.
Parameters
Franke HEAVY DUTY Vandal-Resistant Sanitary Set
- Material: stainless steel
- Gross weight: 69.80 kg
- Net weight: 44.80 kg
- Material code: austenitic stainless steel 1.4301 V2A
- Depth: 780.00 mm
- Width: 810.00 mm
- Height: 1,050.00 mm
- Installation: wall-mounted installation
- Top edge of the chamber: 850.00 mm
- Drain diameter: DN 50 / DN 100
- Inlet diameter: DN 15
- Cabinet width: 500.00 mm
- Piping material: stainless steel
- Self-closing faucets: mechanical
- Toilet paper holder diameter: 153.00 mm
- Spout length: 83.00 mm
- Faucets with built-in aerator: no
- Types of drain fittings: WC tank
- Depth: 160.00 mm
- WC bowl height: 400.00 mm
- WC bowl position: on the right side
Sanitary set "washbasin + toilet bowl" made of stainless steel, matt ground surface, for wall mounting, with integrated electronic elements fittings. Concealed fixing with double-sided screws, lockable inspection opening. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and piezoelectric button with Start/Stop function. Oval washbasin bowl seamlessly connected to the column, plastic siphon. Seamlessly welded recess for storing toilet paper. Welded stainless steel funnel toilet bowl, material thickness 1.6 mm, with floor-length surrounding apron, positioning of the toilet bowl on the right at an angle of 45°. Bowl edge protected against objects being hidden, flush activation via piezoelectric button, flushing performance certified according to EN 997, horizontal rear drain DN 100. Solenoid valve for connecting pre-mixed water or cold water. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Connection voltage 24 V DC. Mounting kit included.
