shipment: Friday (22 November)

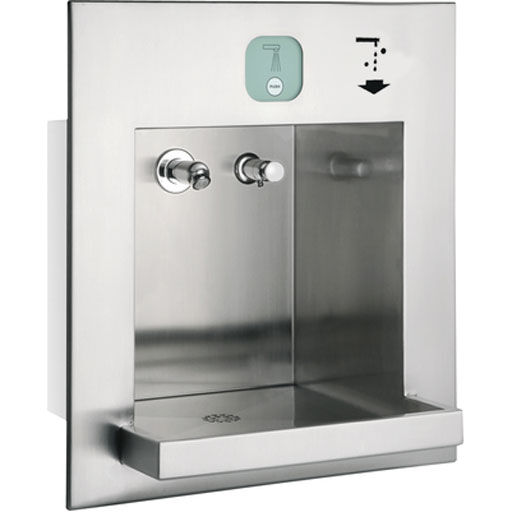

Franke washbasin module 475 x 530 x 390 mm
- Kod produktu: ALIO320
- Manufacturer: FRANKE
- Availability: Product available.
-
Add feedback:
- Obserwuj produkt:
- €2,286.93 €1,859.29 net
-
Order now, we will send today!
Today's shipment is available for only:Place your order now, we will send your wares in:
tommorow at 2:00 PM Friday (22 November) at 2:00 PM 0 pcs. in stock, shipping: tommorow at 2:00 PMdziśh min sec
- Material: stainless steel
- Material code: austenitic stainless steel 1.4301 V2A
- Material thickness: 1.20 mm
- Surface finish: matte
- Bowl surface finish: matte
- Color: no color
- Gross weight: 12 kg
- Net weight: 10.5 kg
- Installation type: concealed installation
- Drain set included: yes
- Types of drain sets: integrated strainer valve (permanently welded)
- Shelf for battery: no
- External dimensions (width × height × depth): 475 × 530 × 390 mm
- Depth of chamber protrusion beyond the face of the washbasin module: 125 mm
- Chamber width: 330 mm
- Chamber depth: 40 mm
- Chamber - chamber depth: 370 mm
- Bowl shape: rectangular
- Chamber location: in the middle
- Number of chambers: 1
- Outlet position: in the middle
- Outlet length: 141 mm
- Siphon included: no
- Overflow: no
Multifunctional All-in-one sanitary module for installation in the wall. The "water + soap + air" washbasin module includes a tap, soap dispenser and hand dryer, which allows you to comprehensively wash and dry your hands. The module is designed for wall mounting. The nozzle of the electric hand dryer is activated automatically when the water is turned off. Technical operation of the device is available from the service room. Vandal-resistant module, adapted for use in public toilets in facilities exposed to acts of vandalism, such as roadside toilets and parking lots, stadiums, etc. The module consists of a housing, a functional recess and a chamber. The whole thing is made of brushed stainless steel and welded together.
Tip: the ALIO320 Module requires accessories:
-
Electronic fittings of the washbasin module for controlling touchless water dispensing and automatic activation of warm air AQUA111
- Soap container mounted on the wall of the service room Z-AQUA083
Shortcuts:
Parameters
- Material: stainless steel
- Material code: austenitic stainless steel 1.4301 V2A
- Material thickness: 1.20 mm
- Surface finish: matte
- Bowl surface finish: matte
- Color: no color
- Gross weight: 12 kg
- Net weight: 10.5 kg
- Installation type: concealed installation
- Drain set included: yes
- Types of drain sets: integrated strainer valve (permanently welded)
- Shelf for battery: no
- External dimensions (width × height × depth): 475 × 530 × 390 mm
- Depth of chamber protrusion beyond the face of the washbasin module: 125 mm
- Chamber width: 330 mm
- Chamber depth: 40 mm
- Chamber - chamber depth: 370 mm
- Bowl shape: rectangular
- Chamber location: in the middle
- Number of chambers: 1
- Outlet position: in the middle
- Outlet length: 141 mm
- Siphon included: no
- Overflow: no
Multifunctional All-in-one sanitary module for installation in the wall. The "water + soap + air" washbasin module includes a tap, soap dispenser and hand dryer, which allows you to comprehensively wash and dry your hands. The module is designed for wall mounting. The nozzle of the electric hand dryer is activated automatically when the water is turned off. Technical operation of the device is available from the service room. Vandal-resistant module, adapted for use in public toilets in facilities exposed to acts of vandalism, such as roadside toilets and parking lots, stadiums, etc. The module consists of a housing, a functional recess and a chamber. The whole thing is made of brushed stainless steel and welded together.
Tip: the ALIO320 Module requires accessories:
-
Electronic fittings of the washbasin module for controlling touchless water dispensing and automatic activation of warm air AQUA111
- Soap container mounted on the wall of the service room Z-AQUA083
