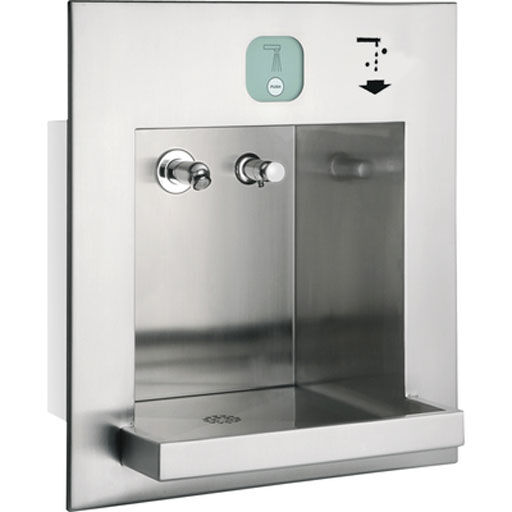

Franke washbasin module 475 × 530 × 390 mm.

  • Kod produktu: ALIO330
  • Manufacturer: FRANKE
  • Availability: Product available.
  • Add feedback:
    0 z 0 opinii
  • Obserwuj produkt:
  • FRANKE
  • €2,425.56 €1,972.00 net
  • Quantity:
  • Order now, we will send today!
    Today's shipment is available for only:

    Place your order now, we will send your wares in:

    tommorow at 2:00 PM Friday (22 November) at 2:00 PM 0 pcs. in stock, shipping: tommorow at 2:00 PMdziś
    hminsec
  • Material: stainless steel
  • Material code: austenitic stainless steel 1.4301 V2A
  • Material thickness: 1.20 mm
  • Surface finish: matte
  • Bowl surface finish: matte
  • Color: no color
  • Gross weight: 15.6 kg
  • Net weight: 10.6 kg
  • Installation type: concealed installation
  • Drain set included: yes
  • Types of drain sets: integrated strainer valve (permanently welded)
  • External dimensions (width × height × depth): 475 × 530 × 390 mm
  • Depth of chamber protruding beyond the face of the washbasin module: 125 mm
  • Chamber width: 330 mm
  • Chamber depth: 40 mm
  • Chamber - chamber depth: 370 mm
  • Bowl shape: rectangular
  • Chamber location: in the middle
  • Number of chambers: 1
  • Outlet position: in the middle
  • Siphon included: no
  • Overflow: no
Multifunctional All-in-one sanitary module for installation in the wall. The "water + soap" washbasin module combines a tap and a liquid soap dispenser and is designed for wall installation. Access to the technical operation of the device is from the service room. Vandal-resistant module, adapted for use in public toilets in facilities exposed to acts of vandalism, such as roadside toilets and parking lots, stadiums, etc. The module consists of a housing, a functional recess and a chamber. The whole thing is made of brushed stainless steel and welded together.

Note: The following accessories are required for the ALIO330 Module:
  • Electronic fittings of the washbasin module for controlling touchless water dispensing AQUA121

  • Soap container mounted on the wall of the service room Z-AQUA083

Parameters

  • Material: stainless steel
  • Material code: austenitic stainless steel 1.4301 V2A
  • Material thickness: 1.20 mm
  • Surface finish: matte
  • Bowl surface finish: matte
  • Color: no color
  • Gross weight: 15.6 kg
  • Net weight: 10.6 kg
  • Installation type: concealed installation
  • Drain set included: yes
  • Types of drain sets: integrated strainer valve (permanently welded)
  • External dimensions (width × height × depth): 475 × 530 × 390 mm
  • Depth of chamber protruding beyond the face of the washbasin module: 125 mm
  • Chamber width: 330 mm
  • Chamber depth: 40 mm
  • Chamber - chamber depth: 370 mm
  • Bowl shape: rectangular
  • Chamber location: in the middle
  • Number of chambers: 1
  • Outlet position: in the middle
  • Siphon included: no
  • Overflow: no
Multifunctional All-in-one sanitary module for installation in the wall. The "water + soap" washbasin module combines a tap and a liquid soap dispenser and is designed for wall installation. Access to the technical operation of the device is from the service room. Vandal-resistant module, adapted for use in public toilets in facilities exposed to acts of vandalism, such as roadside toilets and parking lots, stadiums, etc. The module consists of a housing, a functional recess and a chamber. The whole thing is made of brushed stainless steel and welded together.

Note: The following accessories are required for the ALIO330 Module:
  • Electronic fittings of the washbasin module for controlling touchless water dispensing AQUA121

  • Soap container mounted on the wall of the service room Z-AQUA083
