Franke HEAVY DUTY vandal-proof wall-hung urinal 313 x 341 x 732 mm

  • Kod produktu: CMPX538RS
  • Manufacturer: FRANKE
  • Availability: Product available.
  • Add feedback:
    0 z 0 opinii
  • Obserwuj produkt:
  • FRANKE
  • €2,316.74 €1,883.53 net
  • Quantity:
  • Order now, we will send today!
    Today's shipment is available for only:

    Place your order now, we will send your wares in:

    tommorow at 2:00 PM 03 December (Tuesday) at 2:00 PM 0 pcs. in stock, shipping: tommorow at 2:00 PMdziś
    hminsec

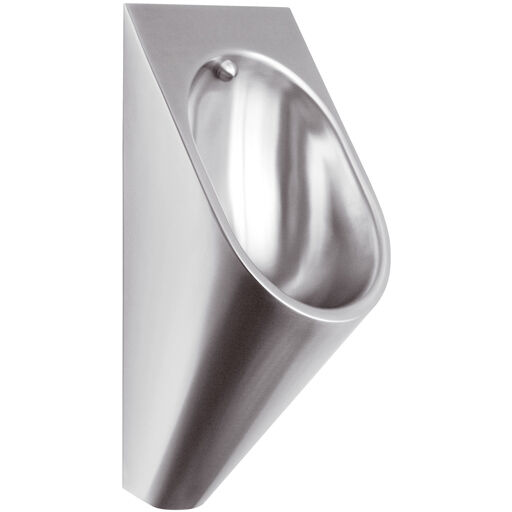

Vandal-resistant waterless urinal Franke HEAVY DUTY

  • Types of urinals: single urinal
  • Material: stainless steel
  • Material code: austenitic stainless steel 1.4301 V2A
  • Material thickness: 1.2 mm
  • Surface finish: matte
  • Gross weight: 9 kg
  • Mounting type: wall-mounted
  • Types of drainage sets: waterless, flat strainer valve
  • Inlet diameter: G 1/2 B
  • Outlet diameter: DN 50
  • Total width: 313 mm
  • Total height: 732 mm
  • Total depth: 341 mm
  • Siphon included: yes
  • Flushing type: waterless
  • Water outlet: concealed
  • Connection 24 V DC
Single wall urinal made of stainless steel. Matte ground surface, material thickness 1.2 mm. Oval shell shape. 1/2˝ flush head made of stainless steel. Concealed, horizontal rear drain. Assembly and fixing in accordance with EN 80 standard, covered fixings. The set includes a DN 50 siphon, mounting strip and convex drain. Waterless urinal, with a 90° elbow, DN 50, including a stainless steel drain and membrane.

Parameters

Vandal-resistant waterless urinal Franke HEAVY DUTY

  • Types of urinals: single urinal
  • Material: stainless steel
  • Material code: austenitic stainless steel 1.4301 V2A
  • Material thickness: 1.2 mm
  • Surface finish: matte
  • Gross weight: 9 kg
  • Mounting type: wall-mounted
  • Types of drainage sets: waterless, flat strainer valve
  • Inlet diameter: G 1/2 B
  • Outlet diameter: DN 50
  • Total width: 313 mm
  • Total height: 732 mm
  • Total depth: 341 mm
  • Siphon included: yes
  • Flushing type: waterless
  • Water outlet: concealed
  • Connection 24 V DC
Single wall urinal made of stainless steel. Matte ground surface, material thickness 1.2 mm. Oval shell shape. 1/2˝ flush head made of stainless steel. Concealed, horizontal rear drain. Assembly and fixing in accordance with EN 80 standard, covered fixings. The set includes a DN 50 siphon, mounting strip and convex drain. Waterless urinal, with a 90° elbow, DN 50, including a stainless steel drain and membrane.
