Set: sink + toilet bowl with a water tank for flushing in the Franke wall.

  • Kod produktu: HDTX805L
  • Manufacturer: FRANKE
  • Availability: Product available.
  • Add feedback:
    0 z 0 opinii
  • Obserwuj produkt:
  • FRANKE
  • €4,460.99 €3,626.82 net
  • Quantity:
  • Order now, we will send today!
    Today's shipment is available for only:

    Place your order now, we will send your wares in:

    tommorow at 2:00 PM Friday (22 November) at 2:00 PM 0 pcs. in stock, shipping: tommorow at 2:00 PMdziś
    hminsec

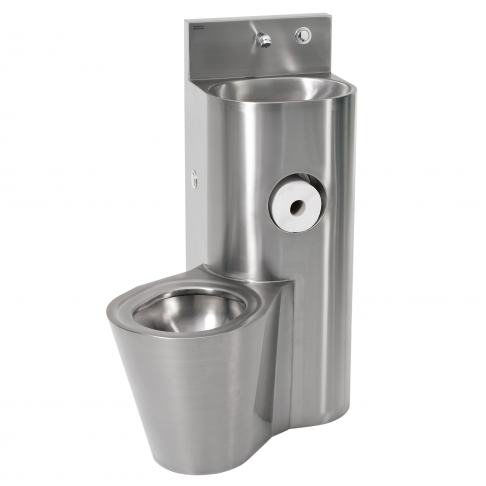

Sanitary set for Franke prison

  • Material: stainless steel
  • Gross weight: 63.00 kg
  • Net weight: 40.00 kg
  • Material code: austenitic stainless steel 1.4301 V2A
  • Depth: 669.00 mm
  • Width: 699.00 mm
  • Height: 1,000.00 mm
  • Installation: threaded screw installation
  • Top edge of the chamber: 850.00 mm
  • Drain diameter: DN 50 / DN 100
  • Inlet diameter: DN 15
  • Housing width: 390.00 mm
  • Piping material: stainless steel
  • Self-closing faucets: mechanical
  • Toilet paper holder diameter: 153.00 mm
  • Spout length: 83.00 mm
  • Faucets with built-in aerator: no
  • Types of drain fittings: WC tank
  • Depth: 20.00 mm
  • WC bowl height: 400.00 mm
  • WC bowl position: on the left side

Sanitary set consisting of a washbasin and a toilet bowl made of matt stainless steel, intended for installation with its back to the wall behind which the room is located service stations, with remote electronic fittings mounted in the service room. Threaded rods for vandal-proof installation on the service room side. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and activation button. Oval washbasin bowl seamlessly connected to the column, plastic siphon, DN 40 drain. Seamlessly welded recess for storing toilet paper. Welded stainless steel funnel toilet bowl, material thickness 1.6 mm, with floor-length surrounding apron, positioning of the toilet bowl on the left side at an angle of 45°. The edge of the bowl is protected against hiding objects, flushing performance certified according to EN 997, horizontal rear drain DN 100. Self-closing globe valve with remote activation for connection to pre-mixed water or natural water, self-closing with anti-rebound protection. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Mounting kit included.


Parameters

Sanitary set for Franke prison

  • Material: stainless steel
  • Gross weight: 63.00 kg
  • Net weight: 40.00 kg
  • Material code: austenitic stainless steel 1.4301 V2A
  • Depth: 669.00 mm
  • Width: 699.00 mm
  • Height: 1,000.00 mm
  • Installation: threaded screw installation
  • Top edge of the chamber: 850.00 mm
  • Drain diameter: DN 50 / DN 100
  • Inlet diameter: DN 15
  • Housing width: 390.00 mm
  • Piping material: stainless steel
  • Self-closing faucets: mechanical
  • Toilet paper holder diameter: 153.00 mm
  • Spout length: 83.00 mm
  • Faucets with built-in aerator: no
  • Types of drain fittings: WC tank
  • Depth: 20.00 mm
  • WC bowl height: 400.00 mm
  • WC bowl position: on the left side

Sanitary set consisting of a washbasin and a toilet bowl made of matt stainless steel, intended for installation with its back to the wall behind which the room is located service stations, with remote electronic fittings mounted in the service room. Threaded rods for vandal-proof installation on the service room side. Column standing on the floor, material thickness 2 mm, raised rear wall with integrated water spout and activation button. Oval washbasin bowl seamlessly connected to the column, plastic siphon, DN 40 drain. Seamlessly welded recess for storing toilet paper. Welded stainless steel funnel toilet bowl, material thickness 1.6 mm, with floor-length surrounding apron, positioning of the toilet bowl on the left side at an angle of 45°. The edge of the bowl is protected against hiding objects, flushing performance certified according to EN 997, horizontal rear drain DN 100. Self-closing globe valve with remote activation for connection to pre-mixed water or natural water, self-closing with anti-rebound protection. Concealed water tank with anti-condensation insulation, constant flushing capacity (9 or 6 l). Mounting kit included.
